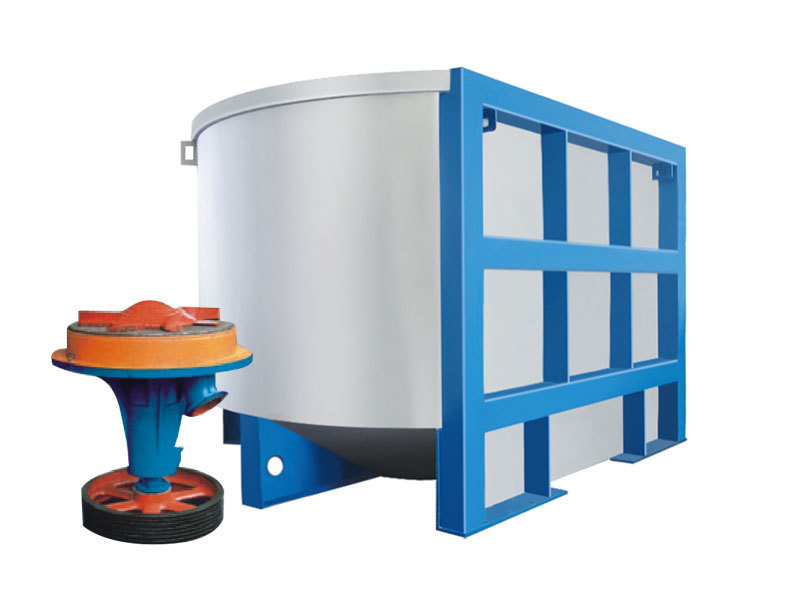

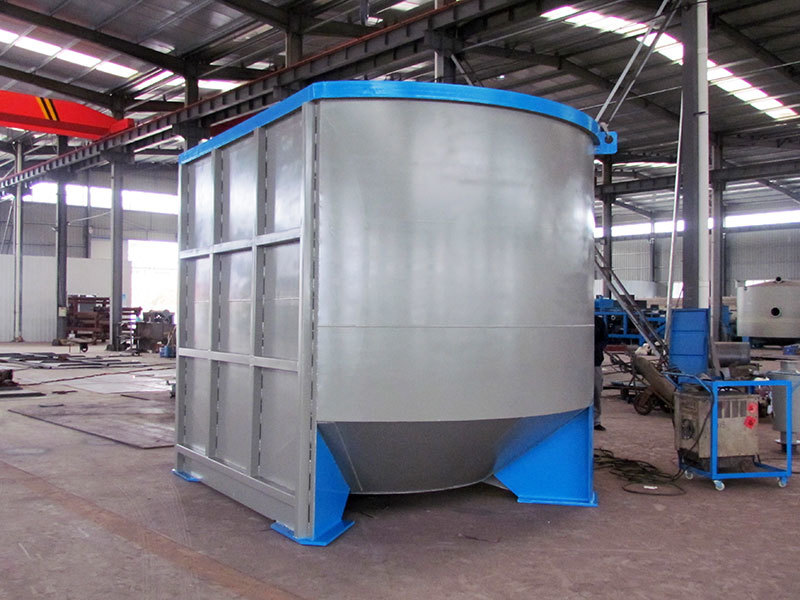

D型水力碎浆机
工作原理
WORKING PRINCIPLE
D型水力碎浆机是在现有传统碎浆机的基础上，参考国外先进技术设计而成。
D型水力碎浆机主要用于碎解各种浆板、损纸及各类废纸。
The D-type hydraulic pulp crusher is designed based on the existing traditional pulp crusher and advanced foreign technology.
The D-type hydraulic pulp crusher is mainly used for crushing various pulp boards, damaged paper, and various types of waste paper.
| 型号Model | ZD-5 | ZD-10 | ZD-15 | ZD-20 | ZD-25 | ZD-30 | ZD-40 |
| 公称容积(m3)Nominal volume | 5 | 10 | 15 | 20 | 25 | 30 | 40 |
| 生产能力(td)Capicity of production | 25-40 | 60-80 | 80-120 | 140-180 | 180-230 | 230-280 | 300-370 |
| 纸浆浓度(%)Consistency of pulp | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 |
| 配用动力(kw)Power of water | 75 | 110 | 160 | 185 | 220 | 280 | 355 |
