ZNS系列内流式压力筛
所属分类：
合作咨询：

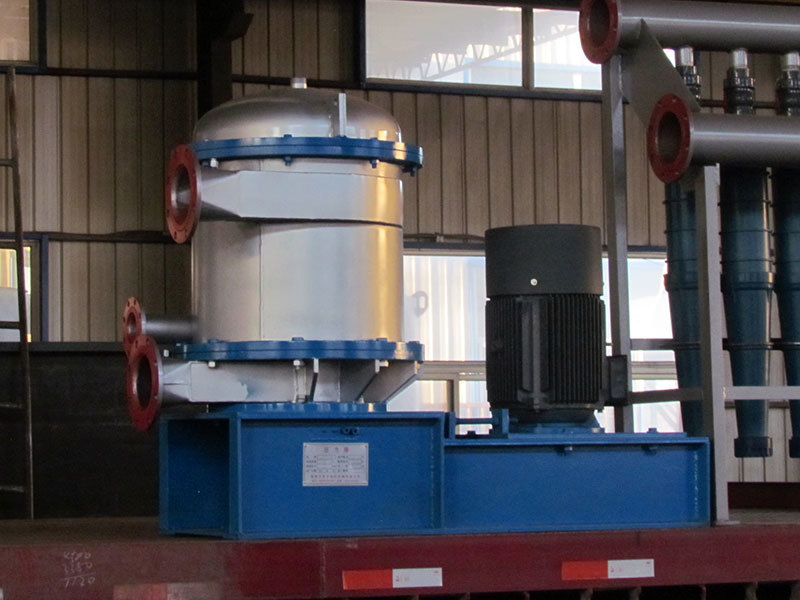

ZNS系列内流式压力筛
工作原理
内流式压力筛用在制浆造纸行业网前流送系统的一段筛，疏散浆团，去除杂质，减小脉冲;用于脱墨系统精筛段，去除胶粘物与油墨粒子等杂质。
The internal flow pressure screen is used in the first stage of the feed system in the pulp and paper industry to evacuate the slurry mass, remove impurities and reduce the pulse, and is used in the deinking system to remove the impurities such as adhesive and ink particles in the fine screen section of the deinking system.
|
型号Model |
ZNS0.6 |
ZNS1 |
ZNS1.2 |
ZNS2 |
ZNS3 |
|
筛选面积（m3) Screening area |
0.3 |
0.6 |
1.2 |
1.5 |
3.0 |
|
生产能力(t/d}Capicity of production |
10-40 |
20-60 |
30-90 |
40-200 |
60-400 |
|
工作浓度(%)working concentration |
0.3-0.8 |
||||
|
筛孔尺寸(mm) Dia of screen hole |
Ø1-Ø2 |
||||
|
筛缝尺寸(mm) Width of screen seam |
H0.25-0.55 |
||||
|
电机功车(kw) power of motor |
11 |
18.5 |
22 |
37 |
45 |
